Hand Held Screw Piling

  1. Accessibility: The hand-held screw pile system is an excellent choice when access is limited or difficult. Its small size allows it to be transported through doorways and even up stairs, making it highly versatile.
  2. Terraced House Extensions: It’s particularly well-suited for extending terraced houses where space and access can be challenging.

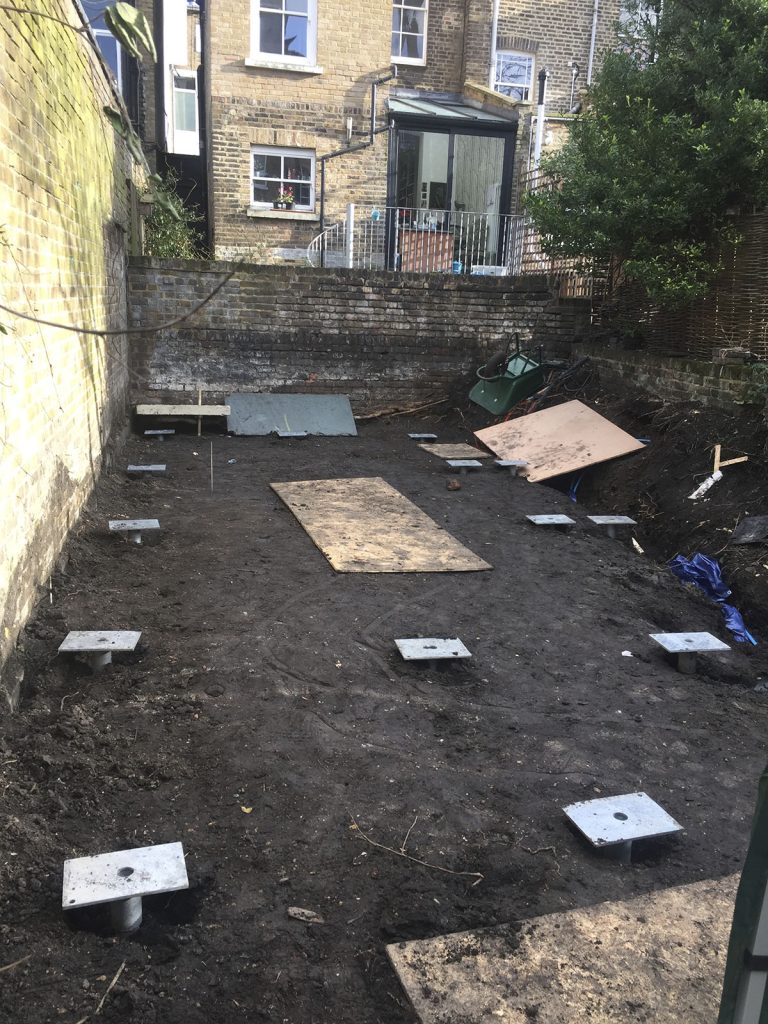

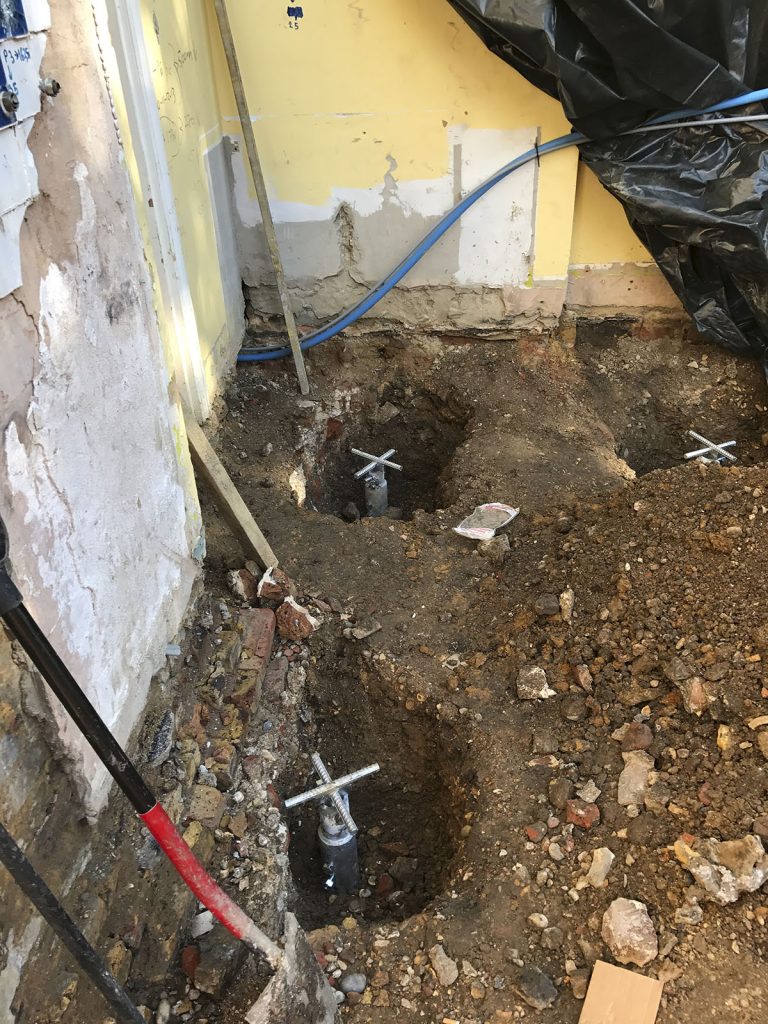

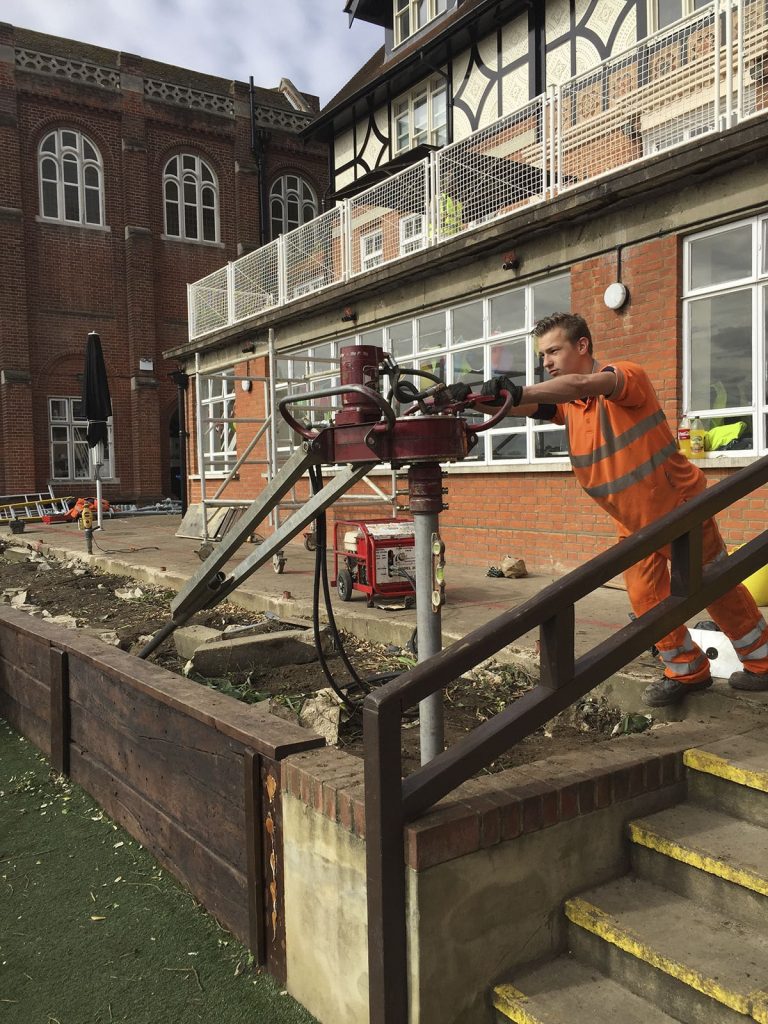

  3. Wide Range of Applications: This system has been used in various settings, including basements, rail and London Underground projects, back gardens, schools, Scottish Power installations, inside buildings, lift shafts and embankments.

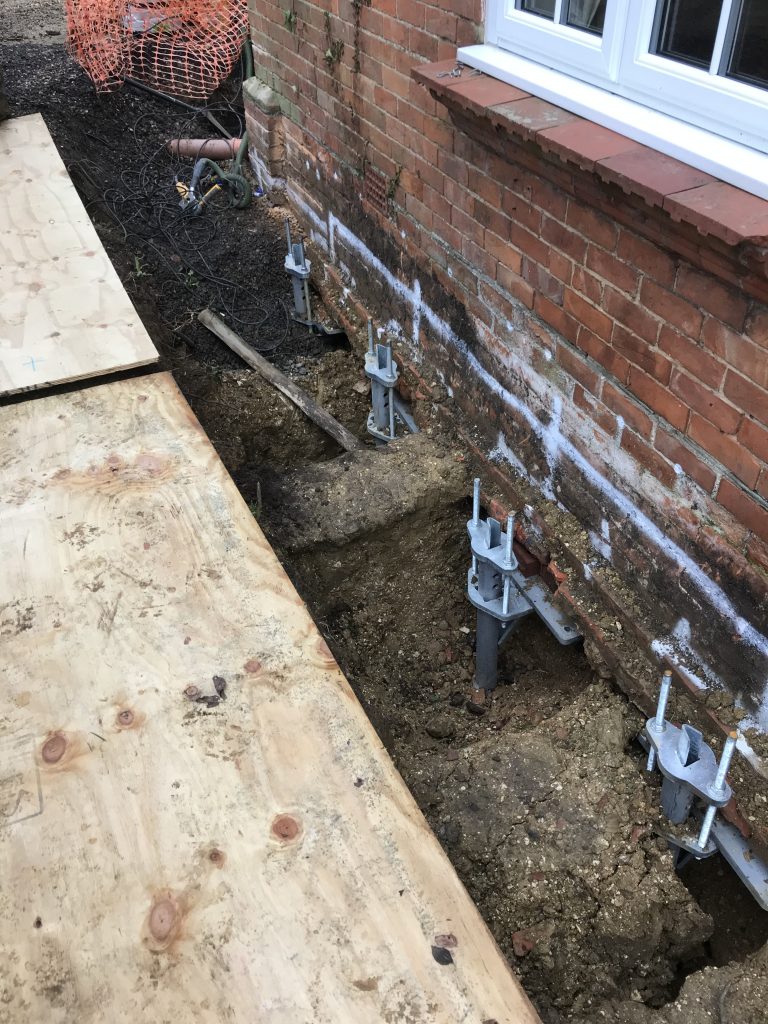

  4. Technical Details: The hand-held screw pile system operates with a power pack and hand-held torque head. It offers two types of piles: 60mm with ultimate loads of 12 tons or 76mm with ultimate loads of 18 tons. Adaption plates can be added to the pile top for connecting various structural elements. Pile pressure and resistance are monitored through a gauge on the unit.
  5. Benefits: The system offers several benefits, including quick installation times, zero vibration, no soil removal, minimal noise levels, complete portability, and suitability for low headroom situations. It’s also a cost-effective option.
