Braced Elevated Concrete floor

Client: Private
Purpose: Raised braced concrete floor (wooden props for temporary floor support)
Ground Conditions: fill and chalk
Pile type: 89mm
Depth: 6m
Quantity: 12
Additional work: None
Location: HMP Winchester

HMP Wincher need to up date security, being tight for space there were few options to attach this unit to the existing building, Adding to problems its on a sloping site.

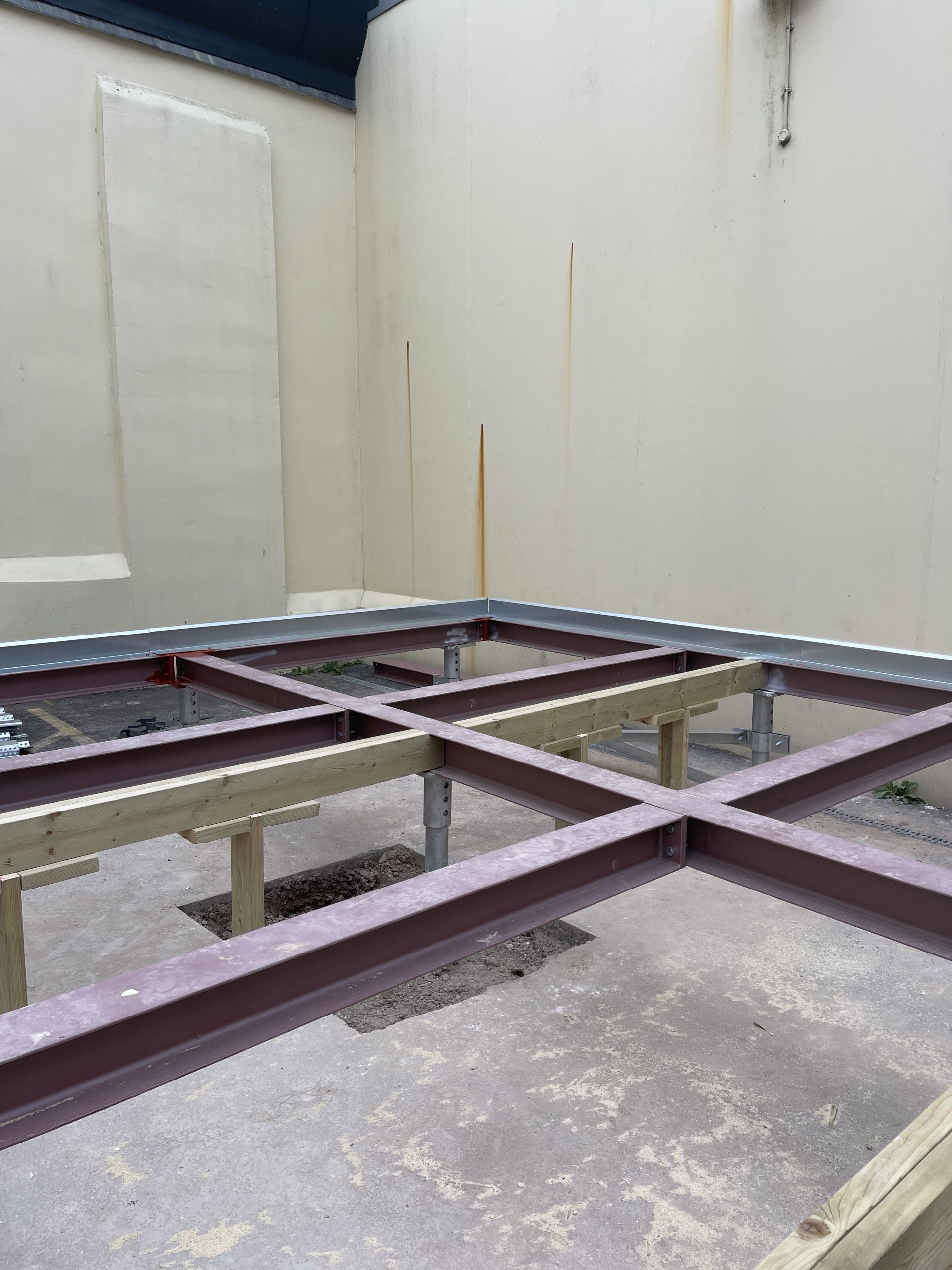

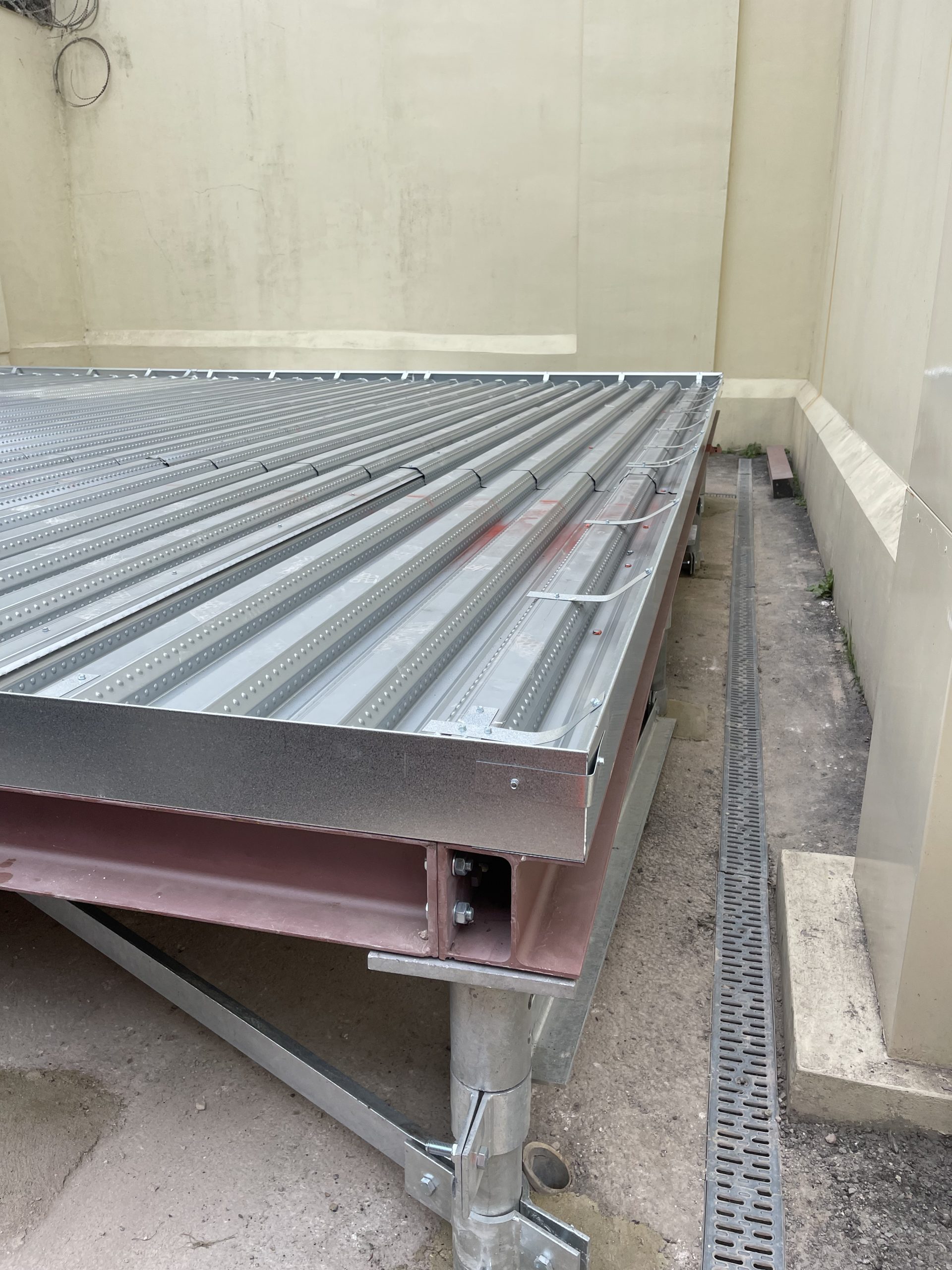

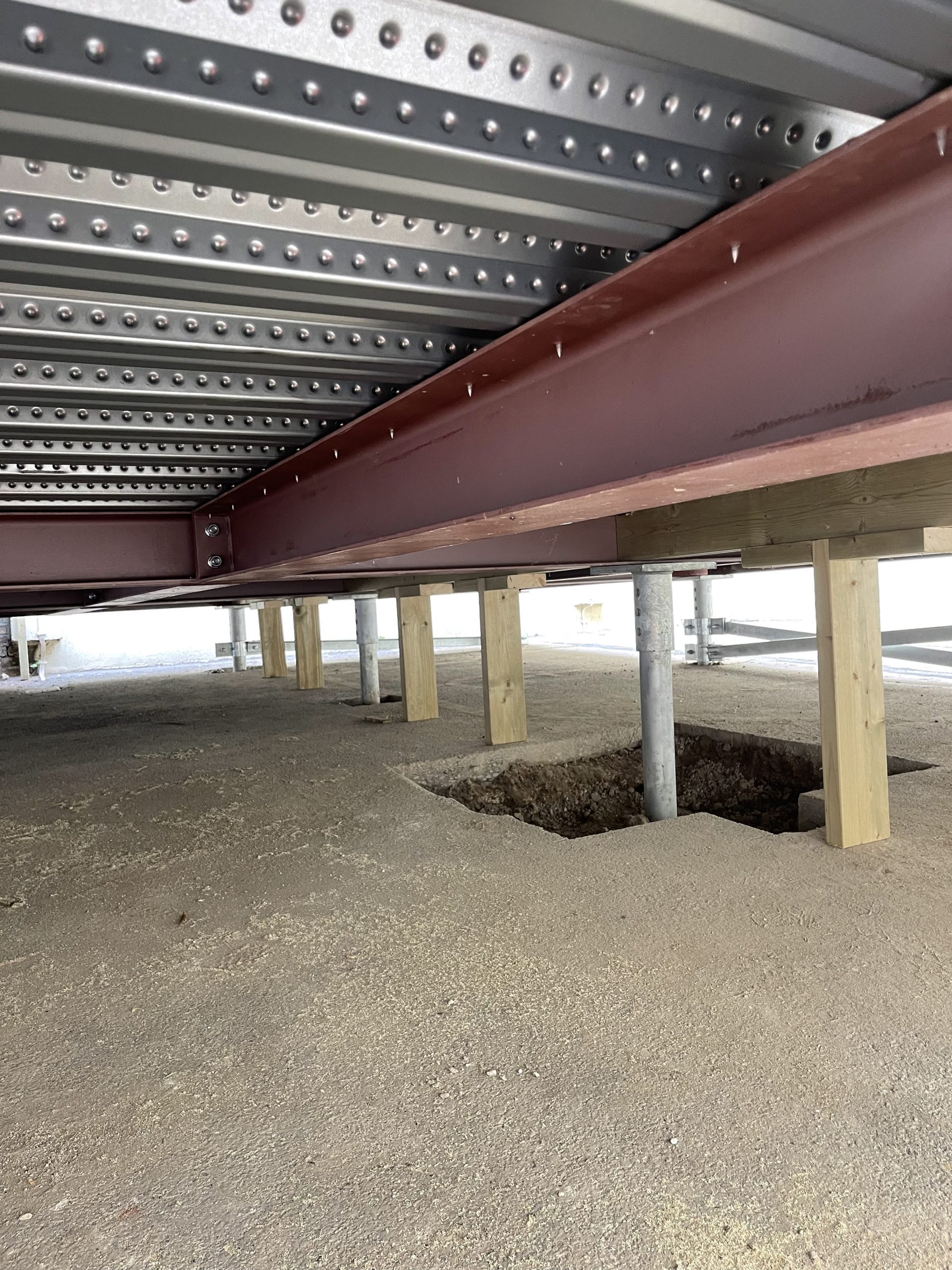

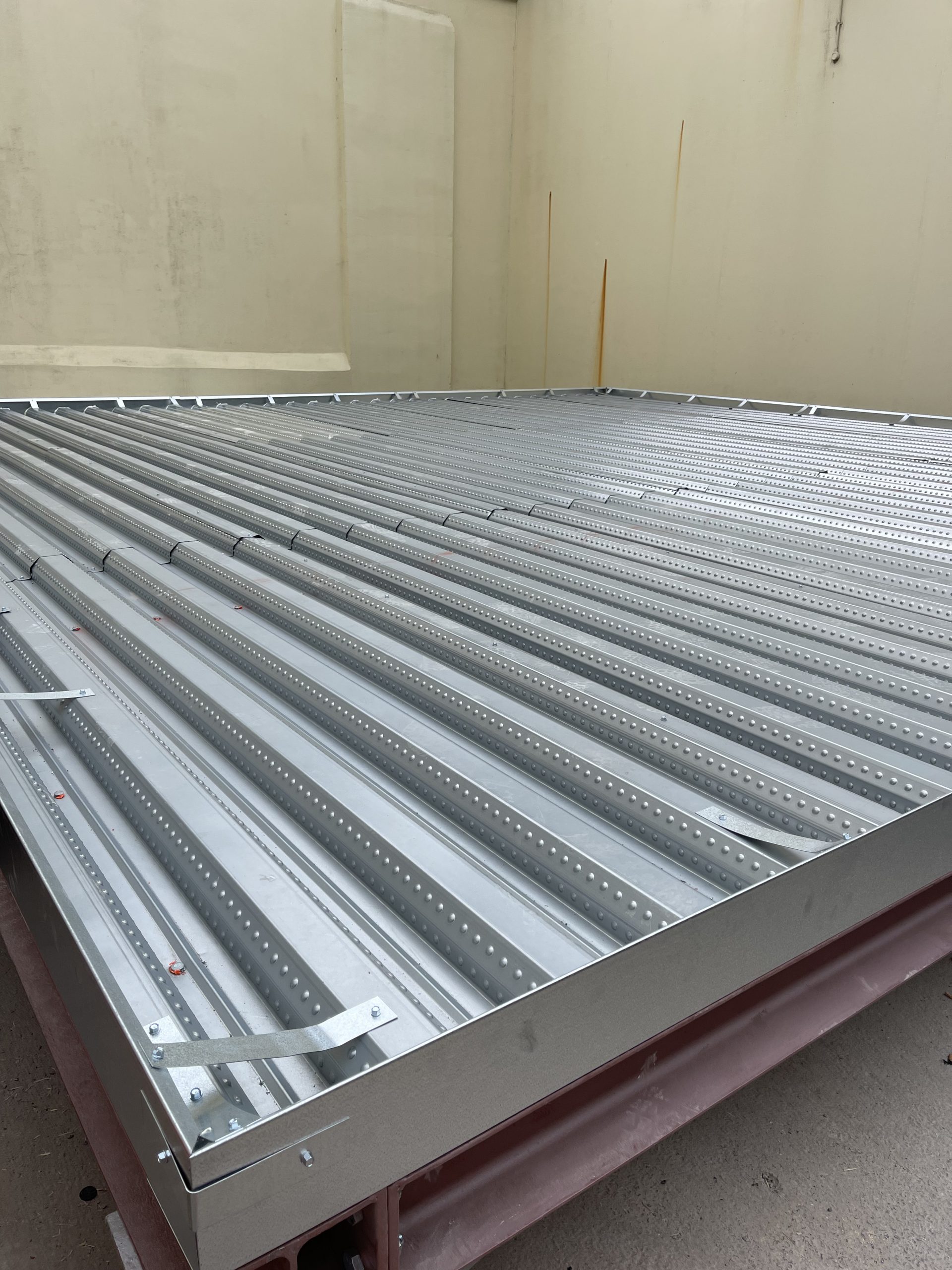

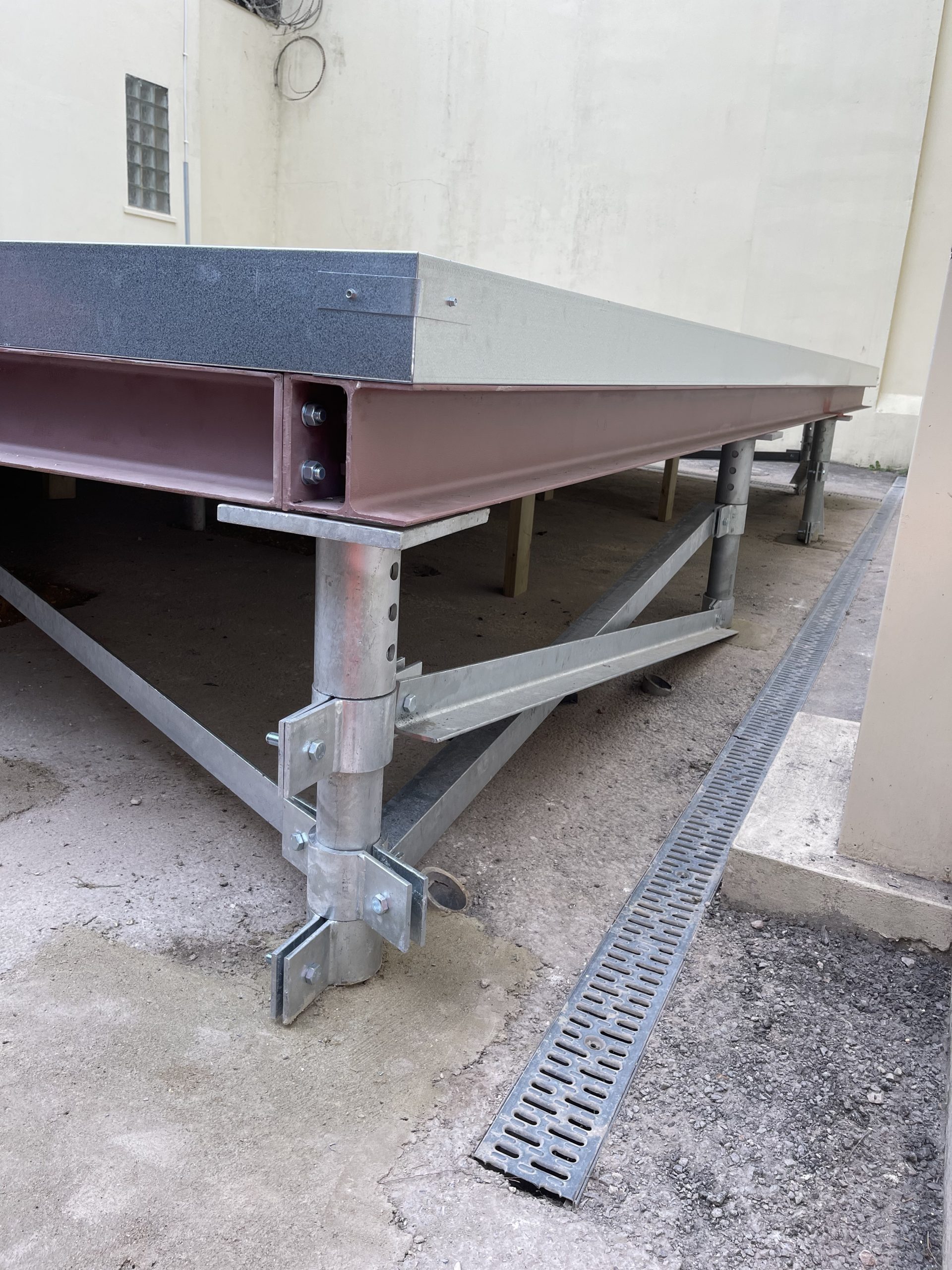

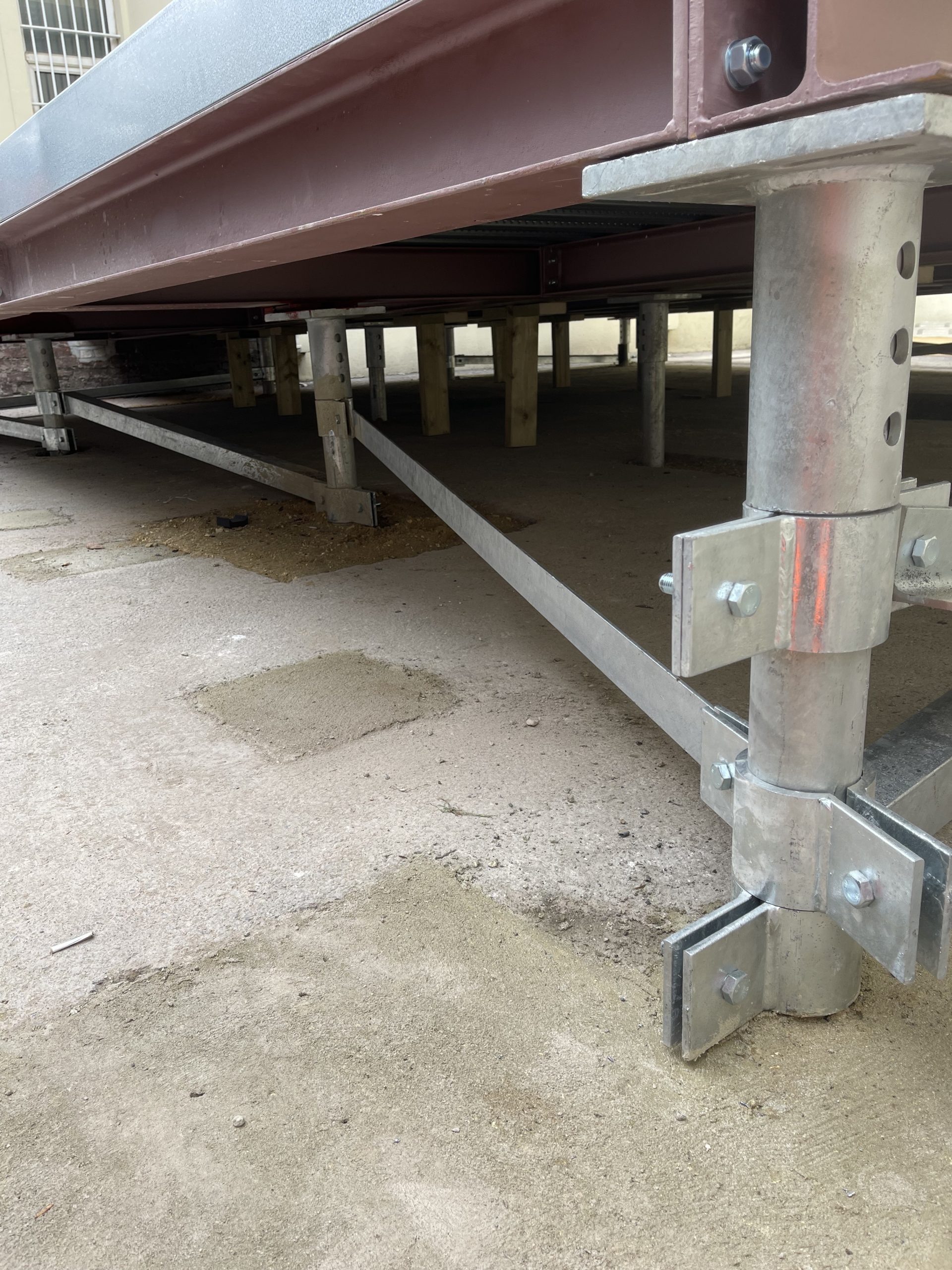

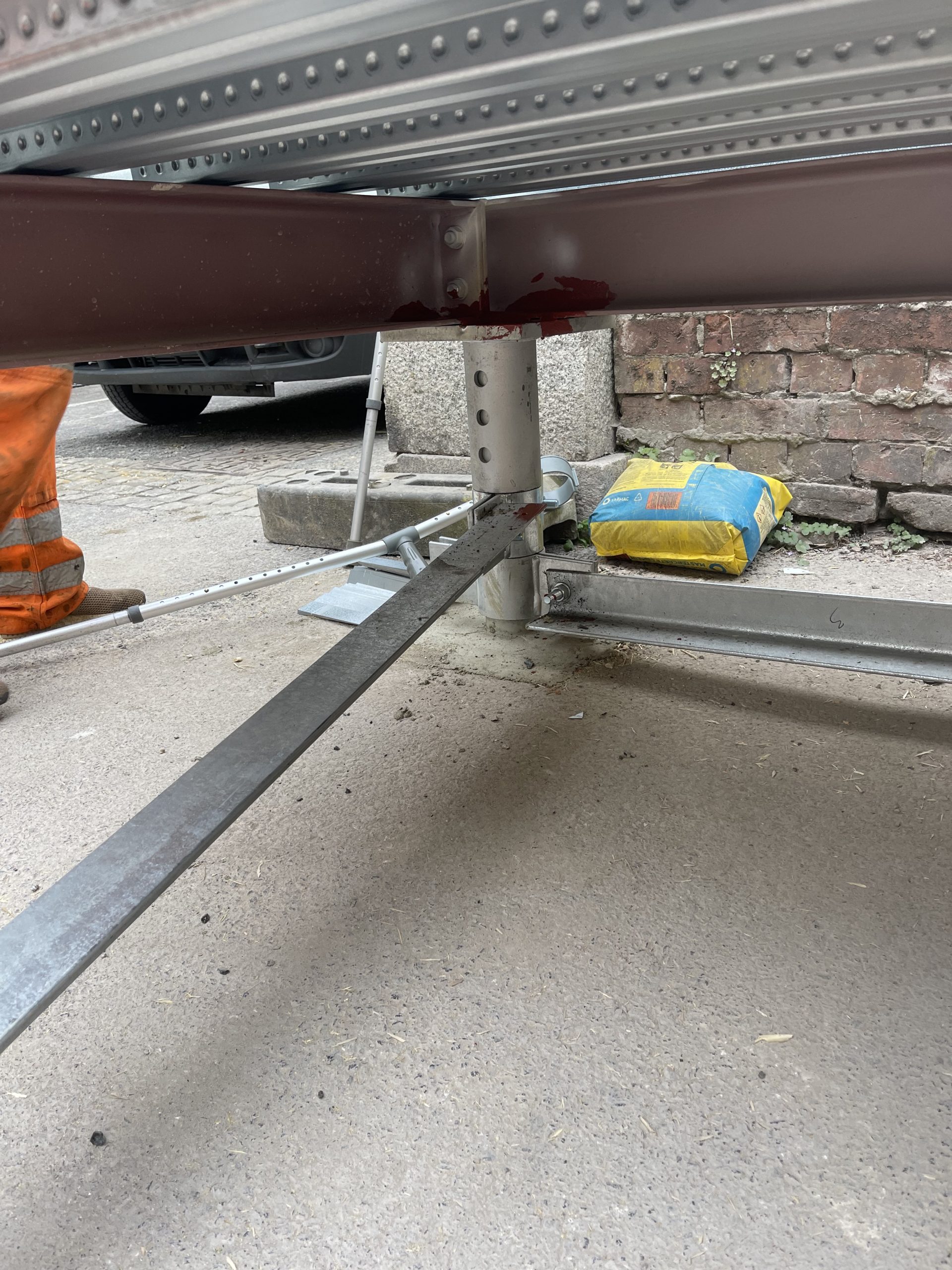

Using screw piling attached to a steel frame capped with the Hody profiled sheets (https://www.cdi-icm/system/hody) steel deck floor system enabled a raised braced concrete floor ready to land the new scanner unit.

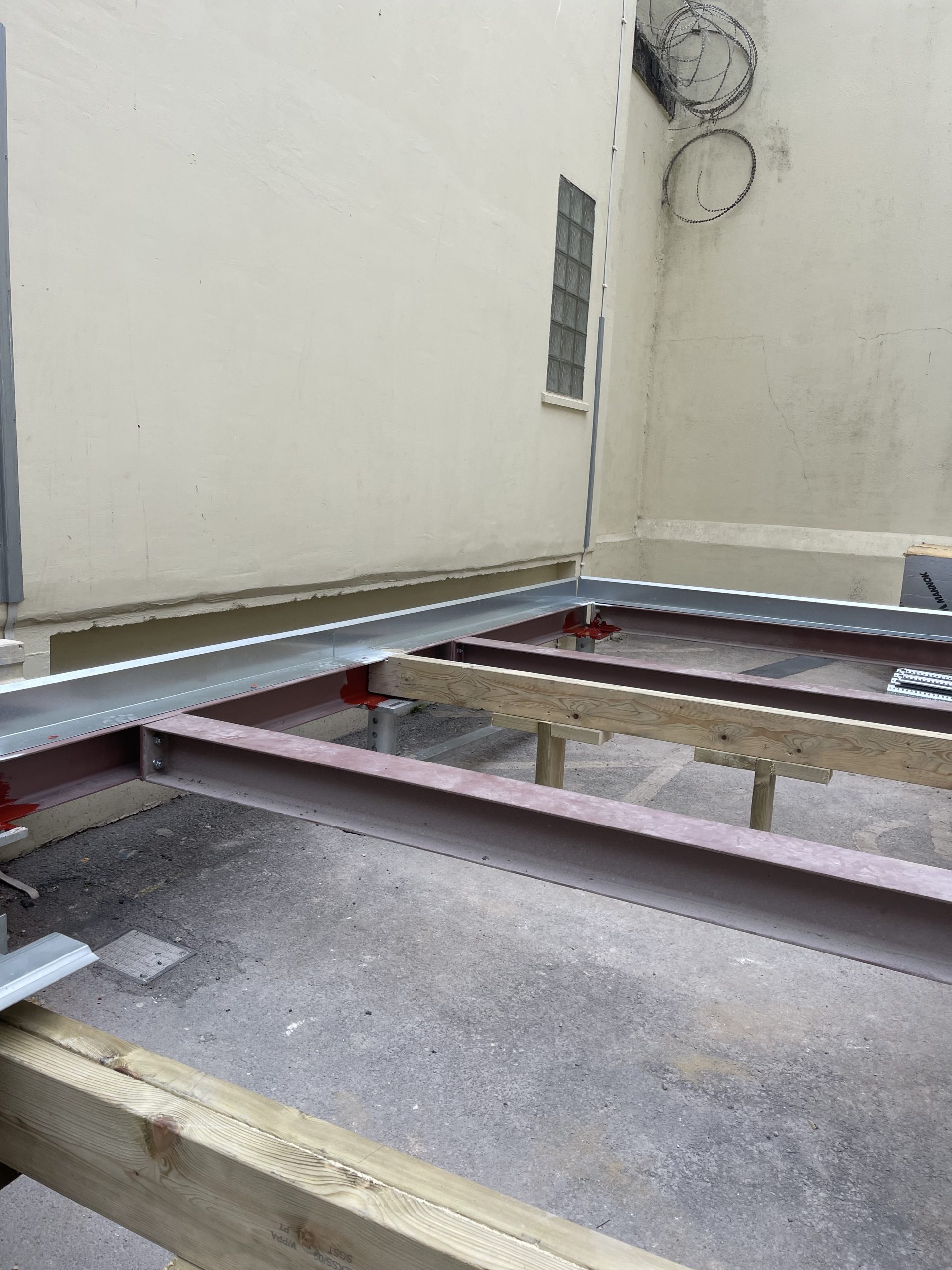

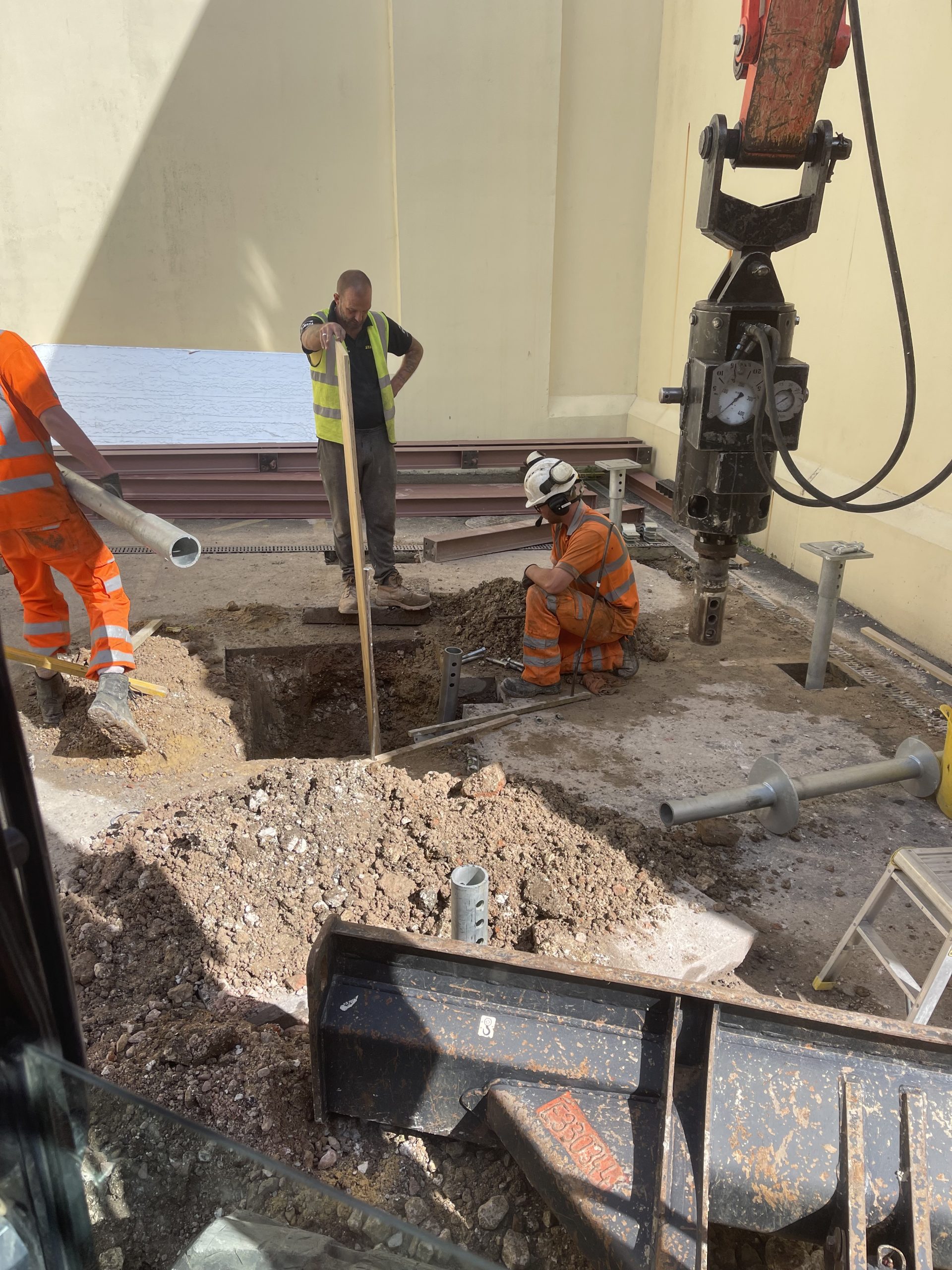

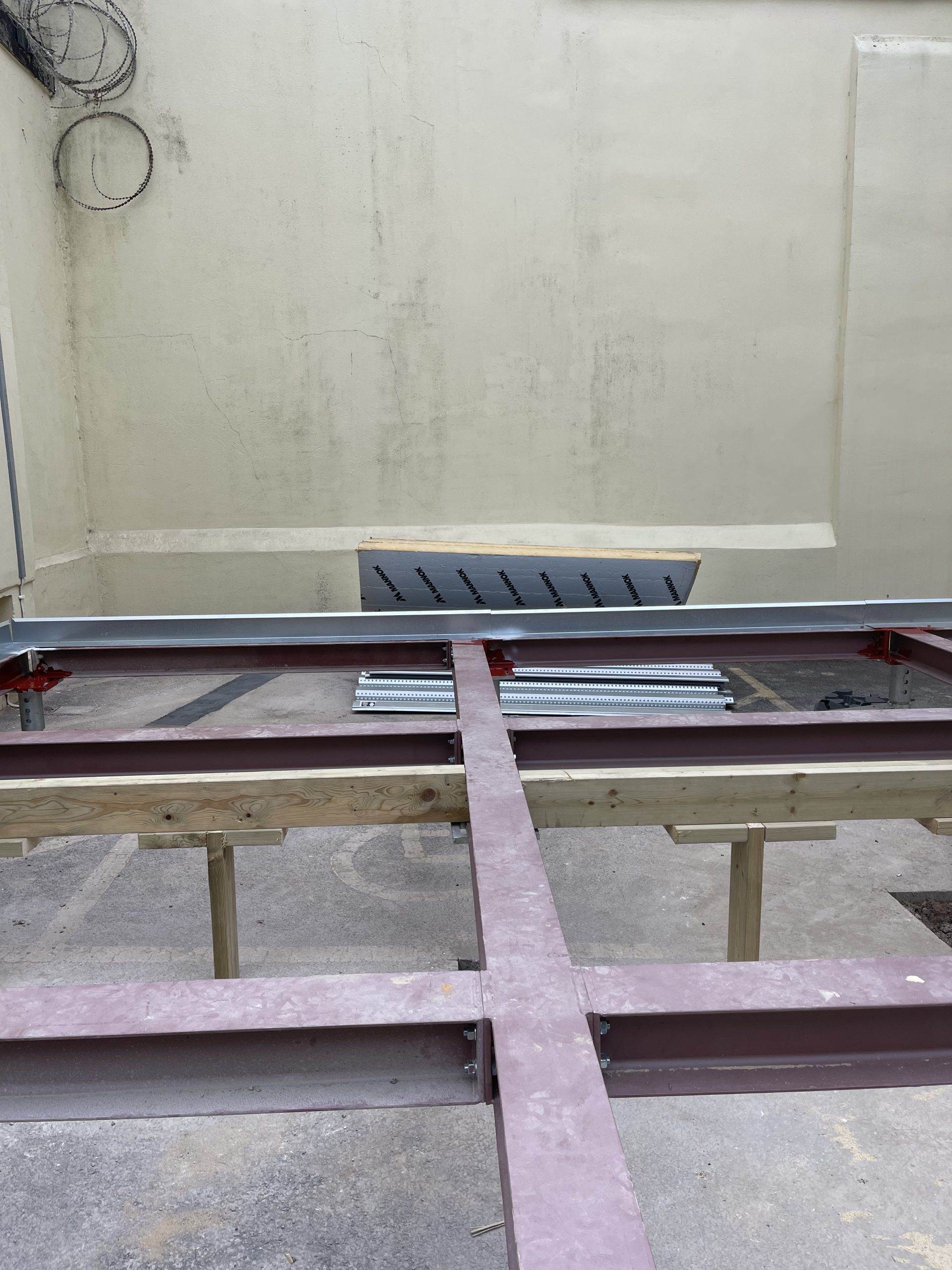

Screw piles, steel frame and Hody floor installed in approx 5 days ready for concrete pour.

Fast, clean and strong
