Clayvering Underpin

Client: Home Owner

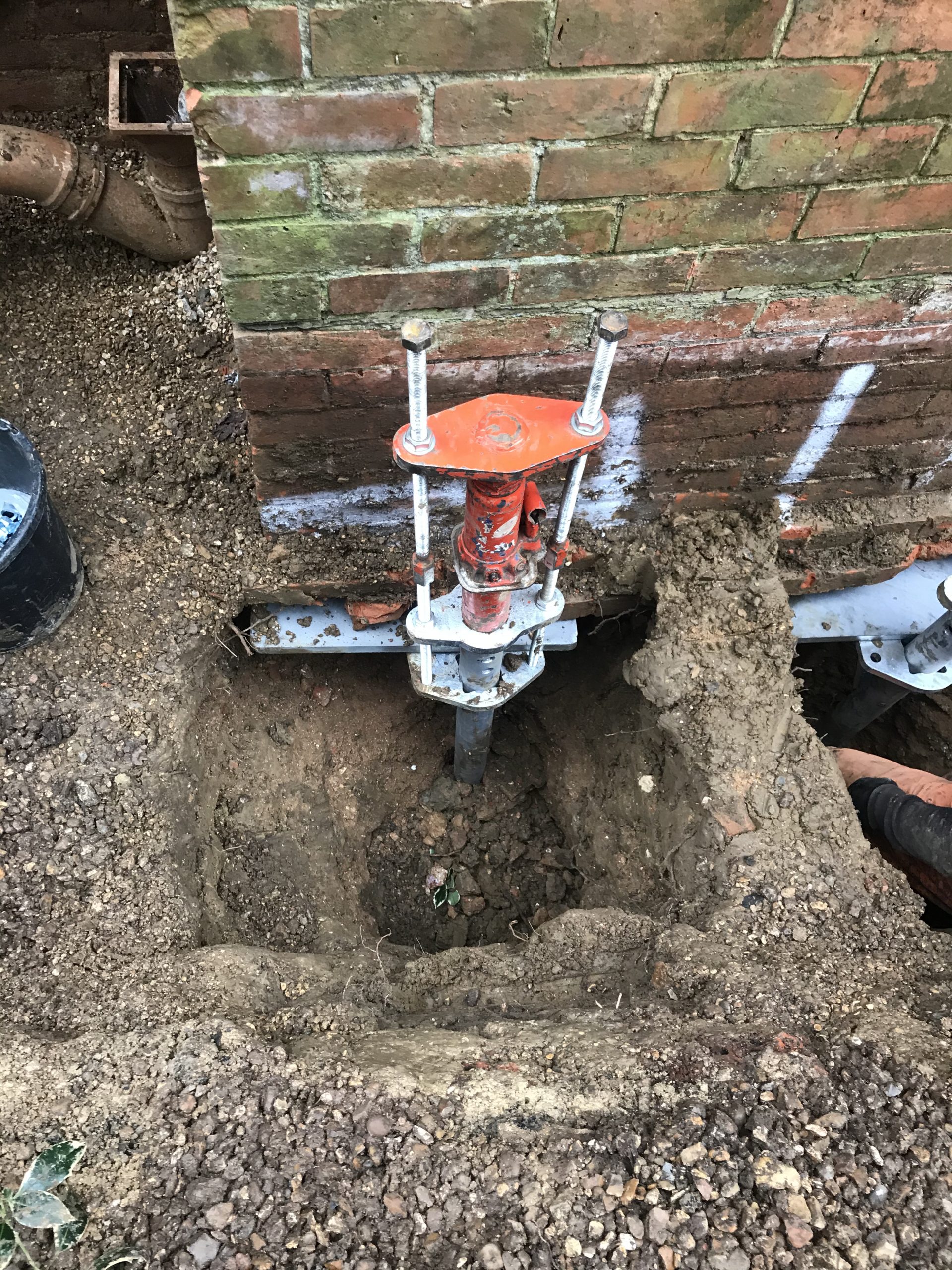

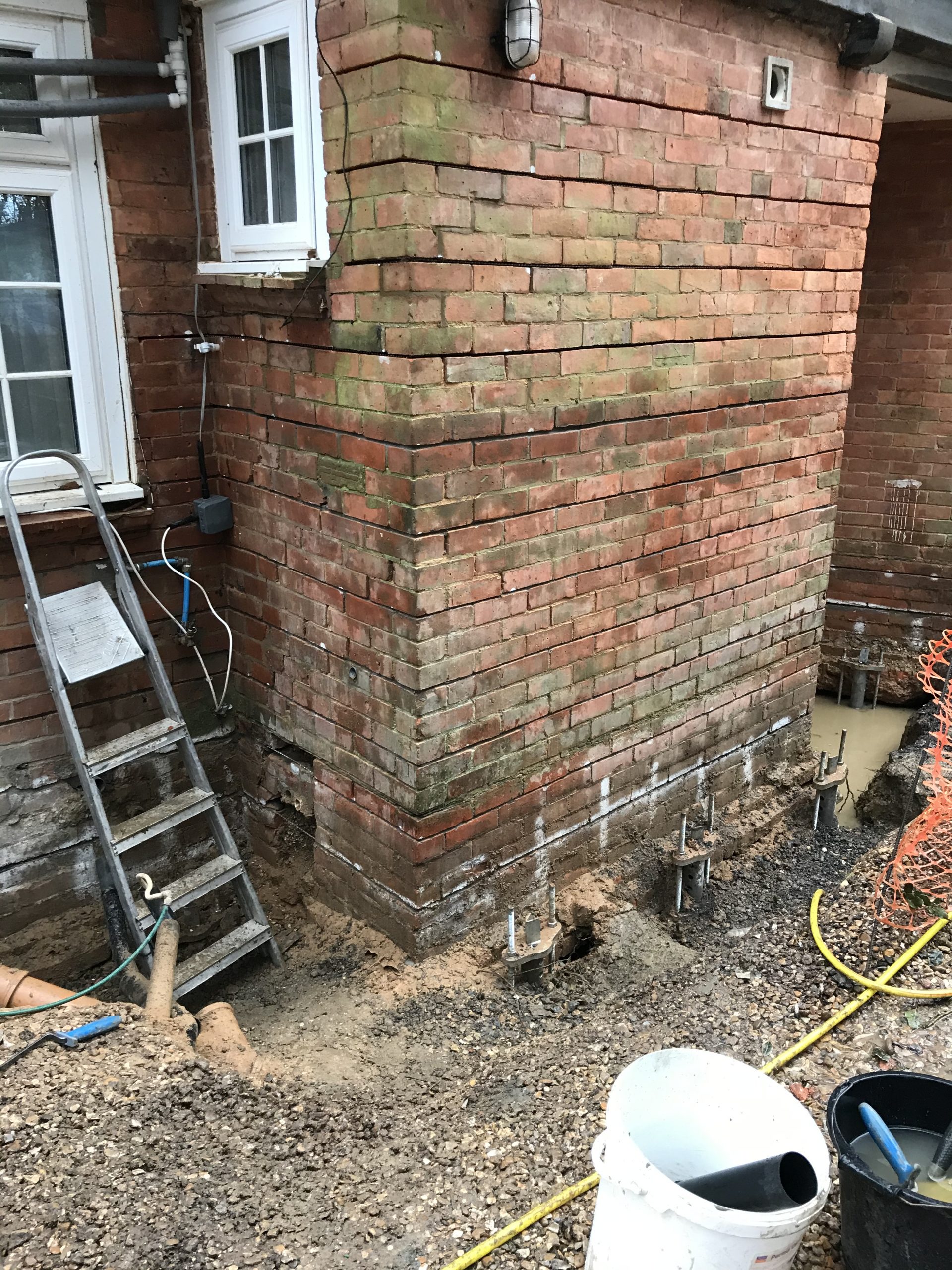

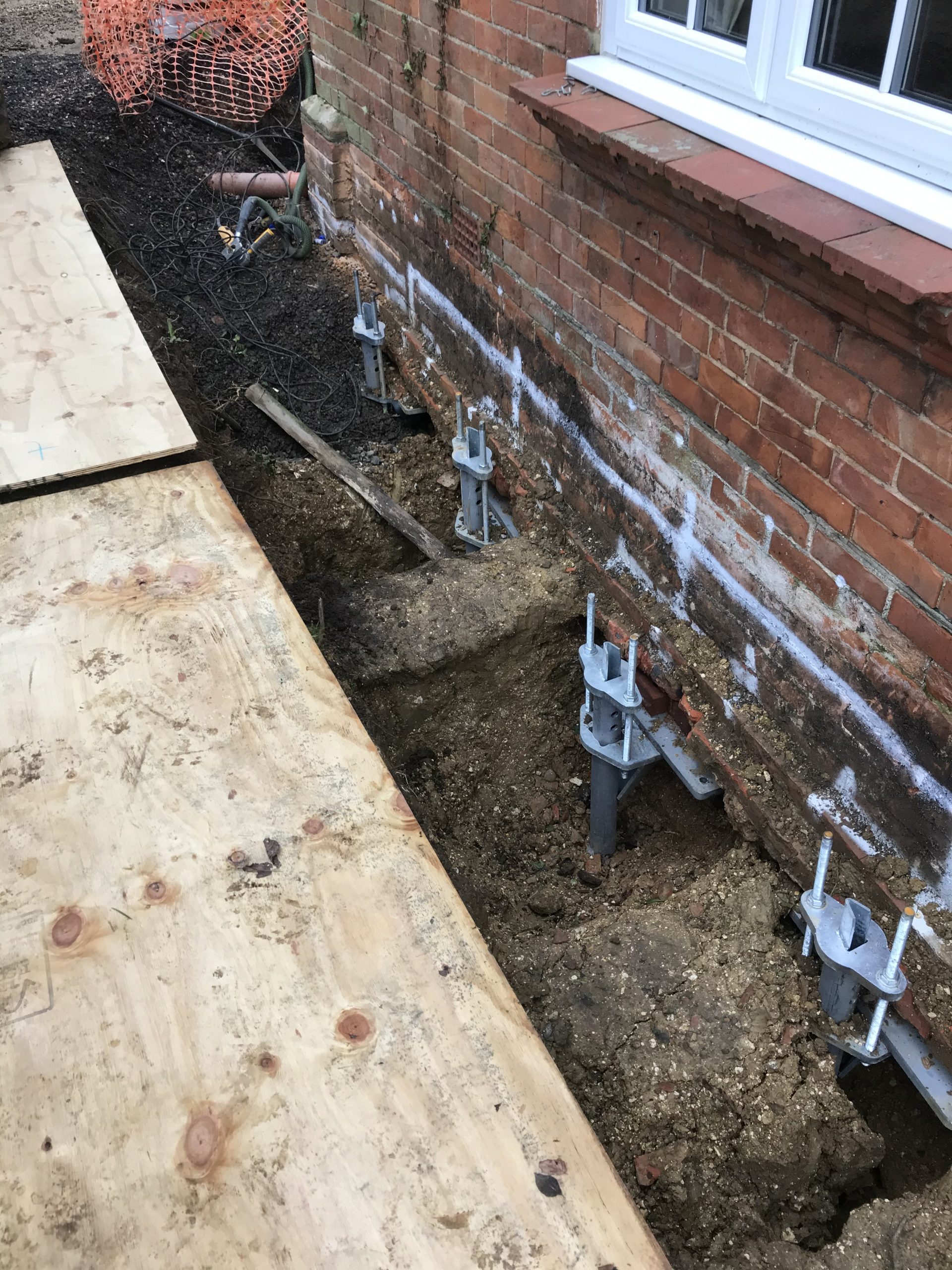

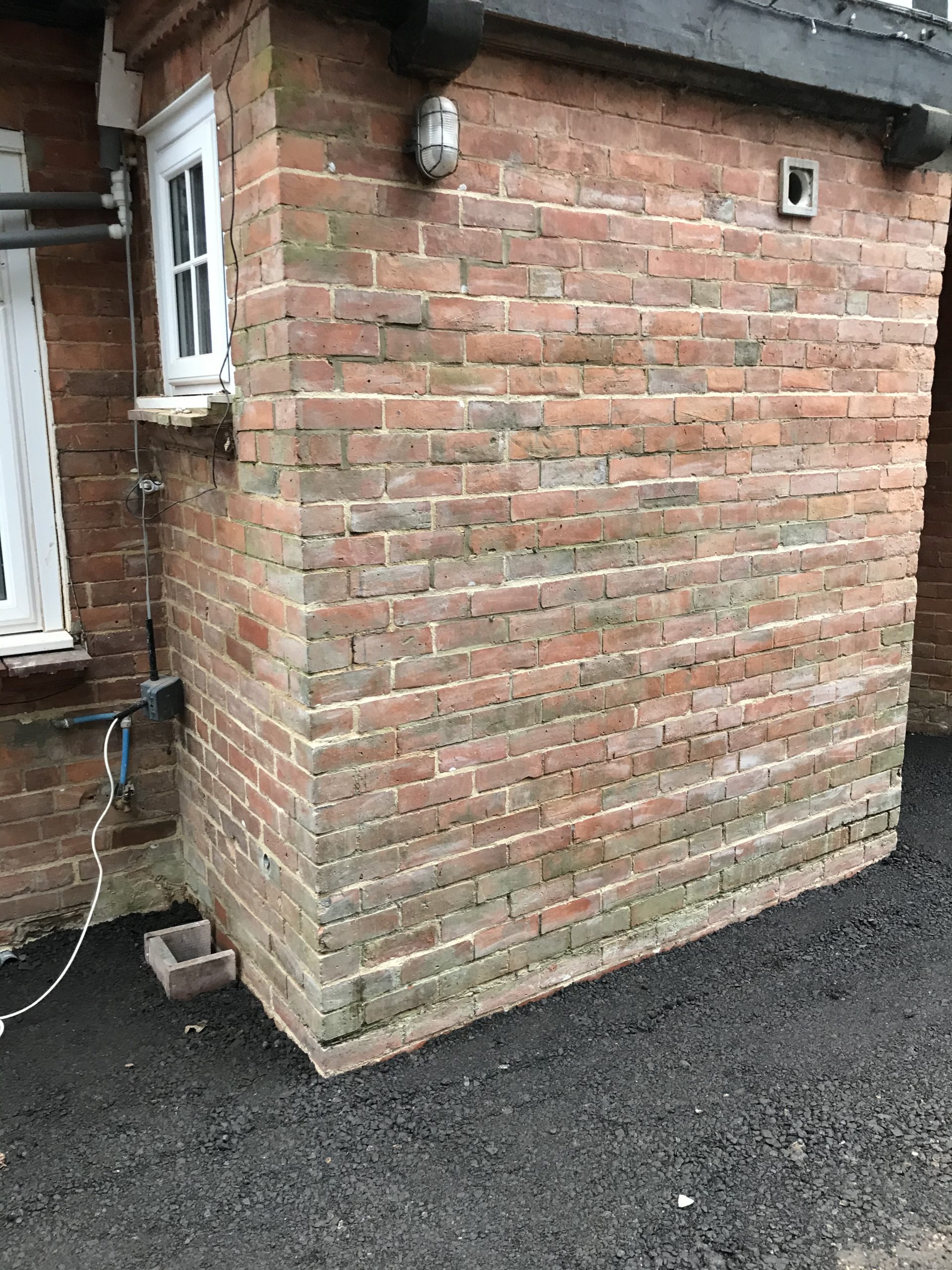

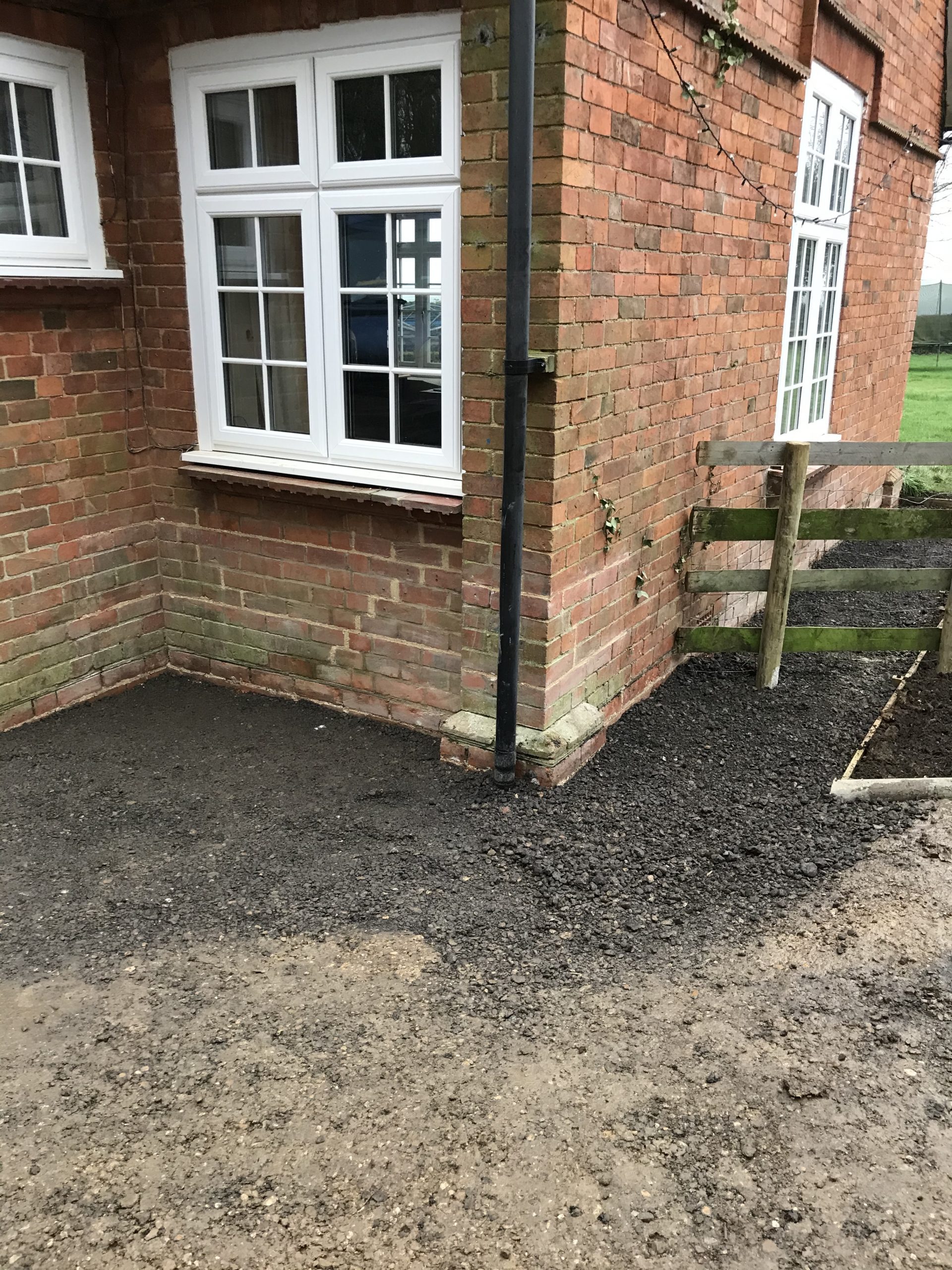

Purpose: To Screw/Helical pile under pin to stop seasonal movement. This House has no concrete foundation to support so we created a Bridging system to create a spread support under the corbeled foundations. We created a Helical bar supported beam around the affected areas to create a ring beam support. Works completed in 12 days with no affect to the inside of the property

Ground Conditions: Desiccated Clay

Pile type: 76mm

Depth: 4-5m

Quantity: 25

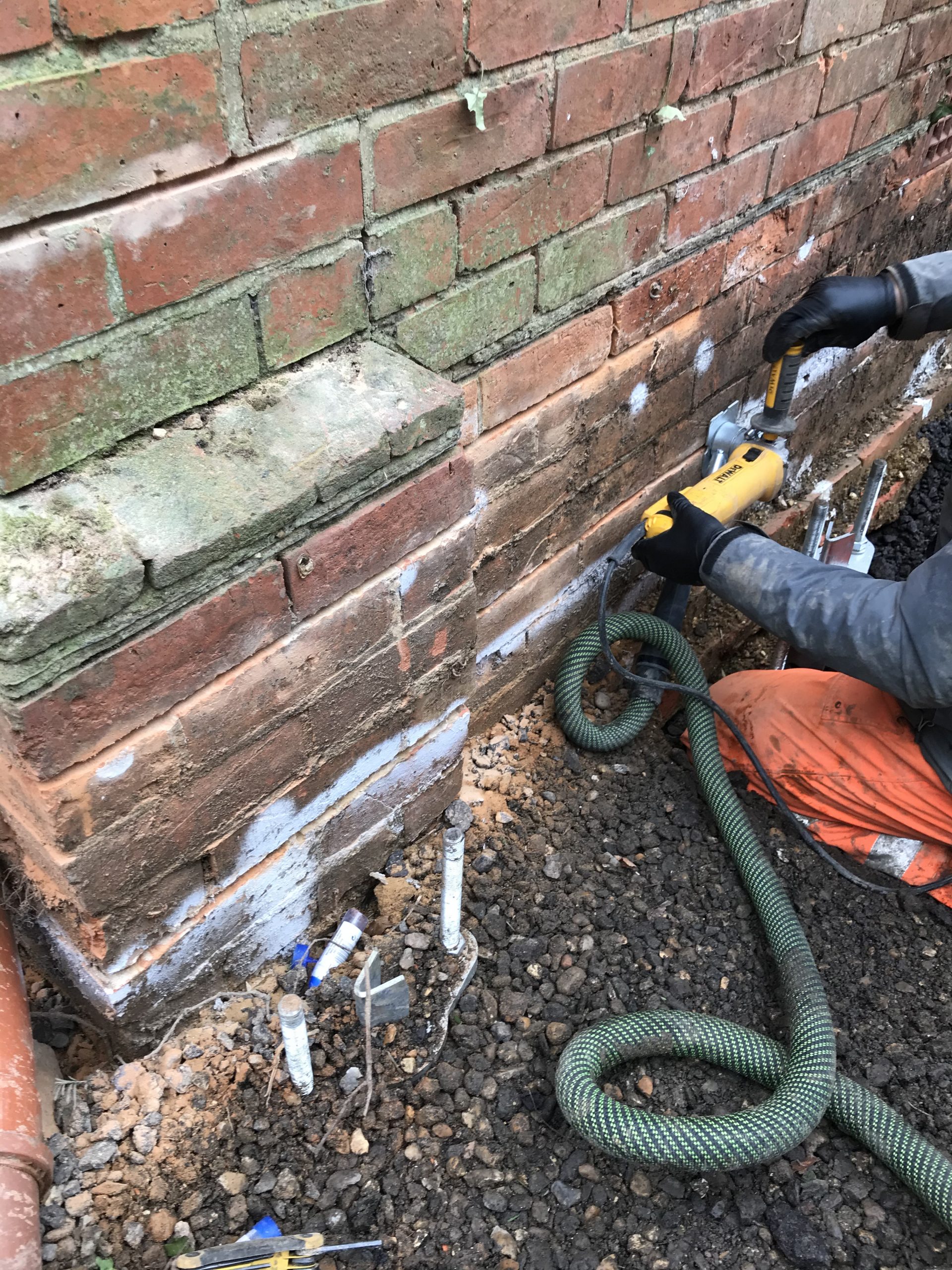

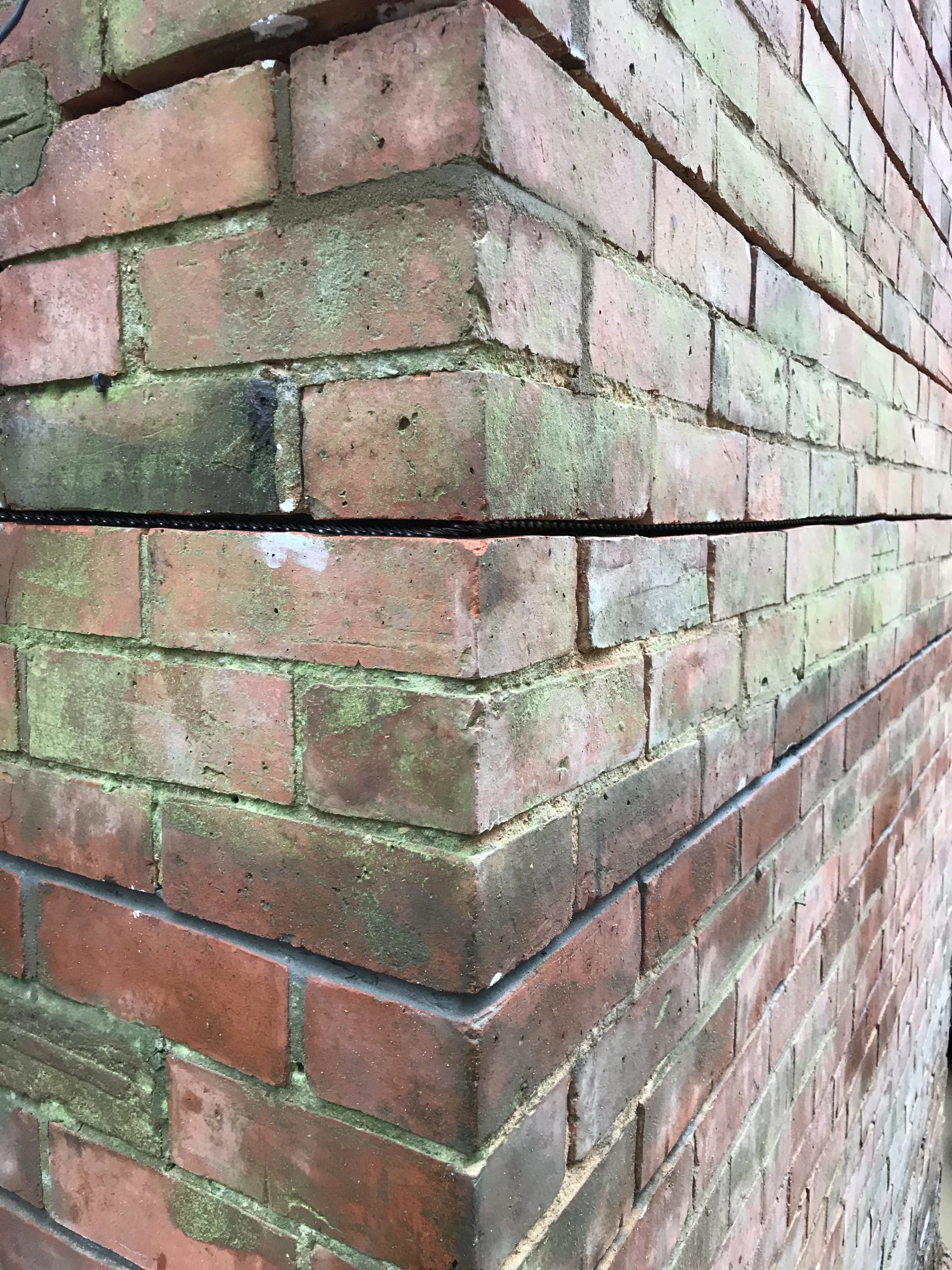

Additional work: Helical bar support ring beam

Location: Clayvering

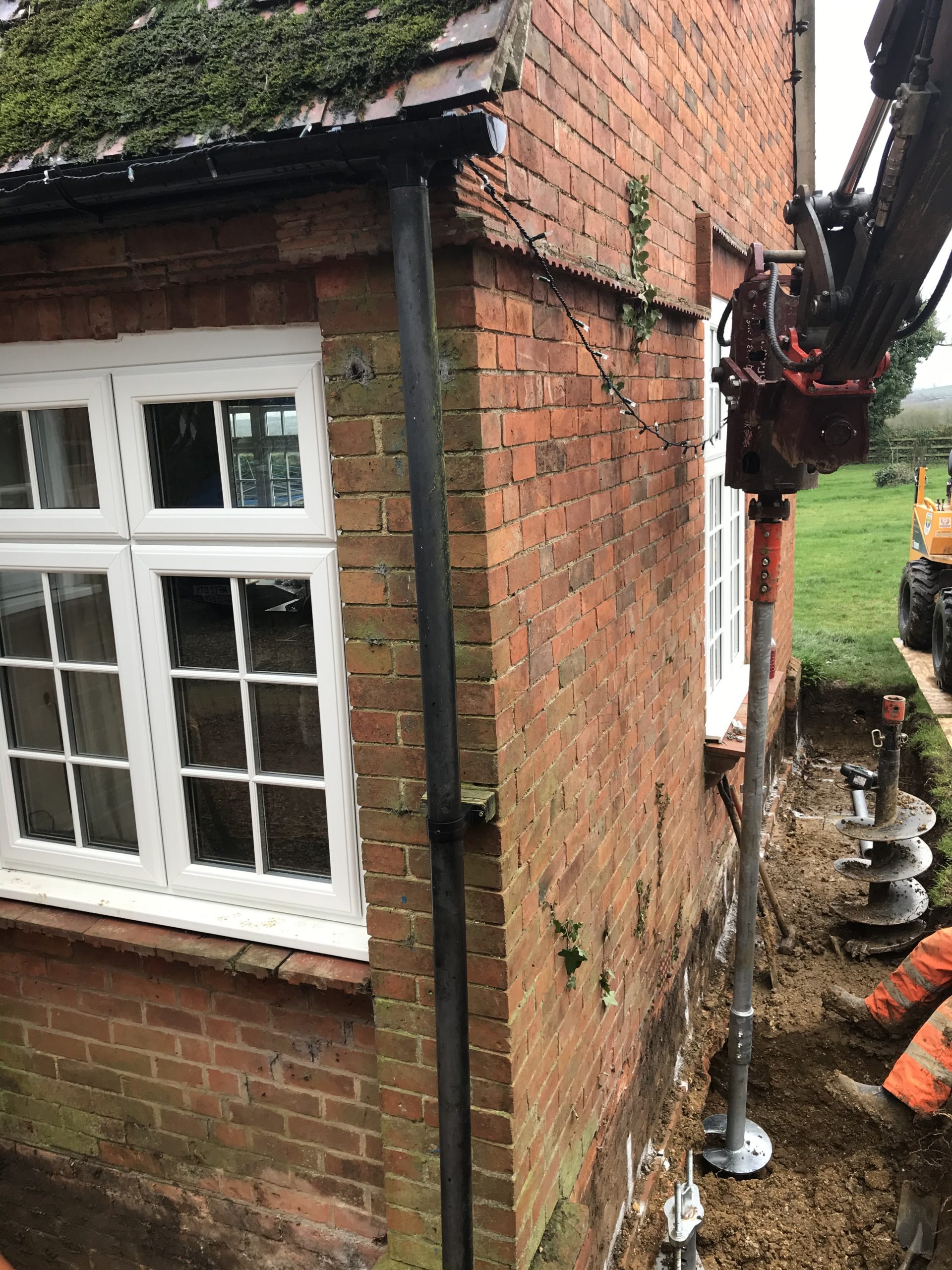

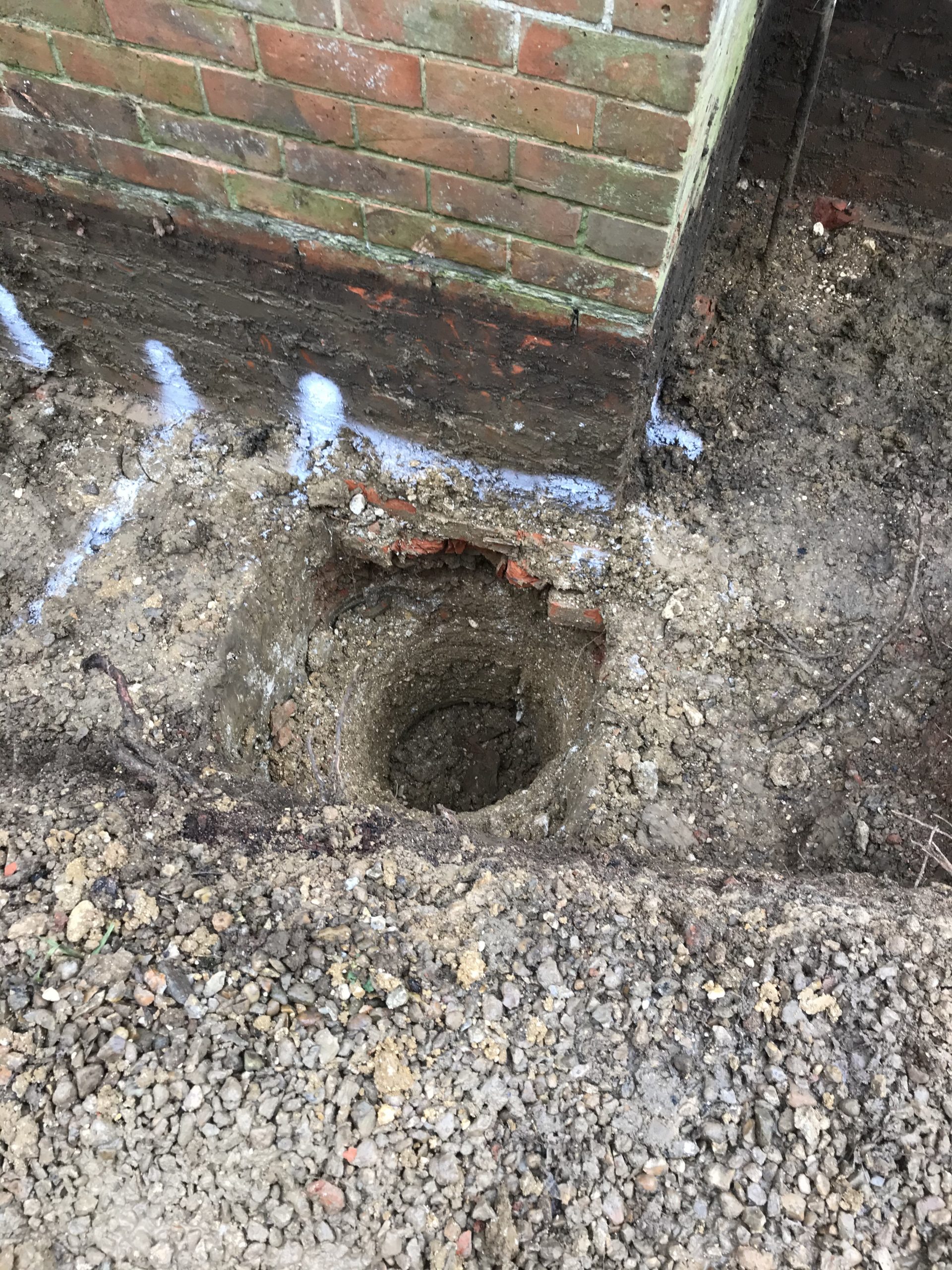

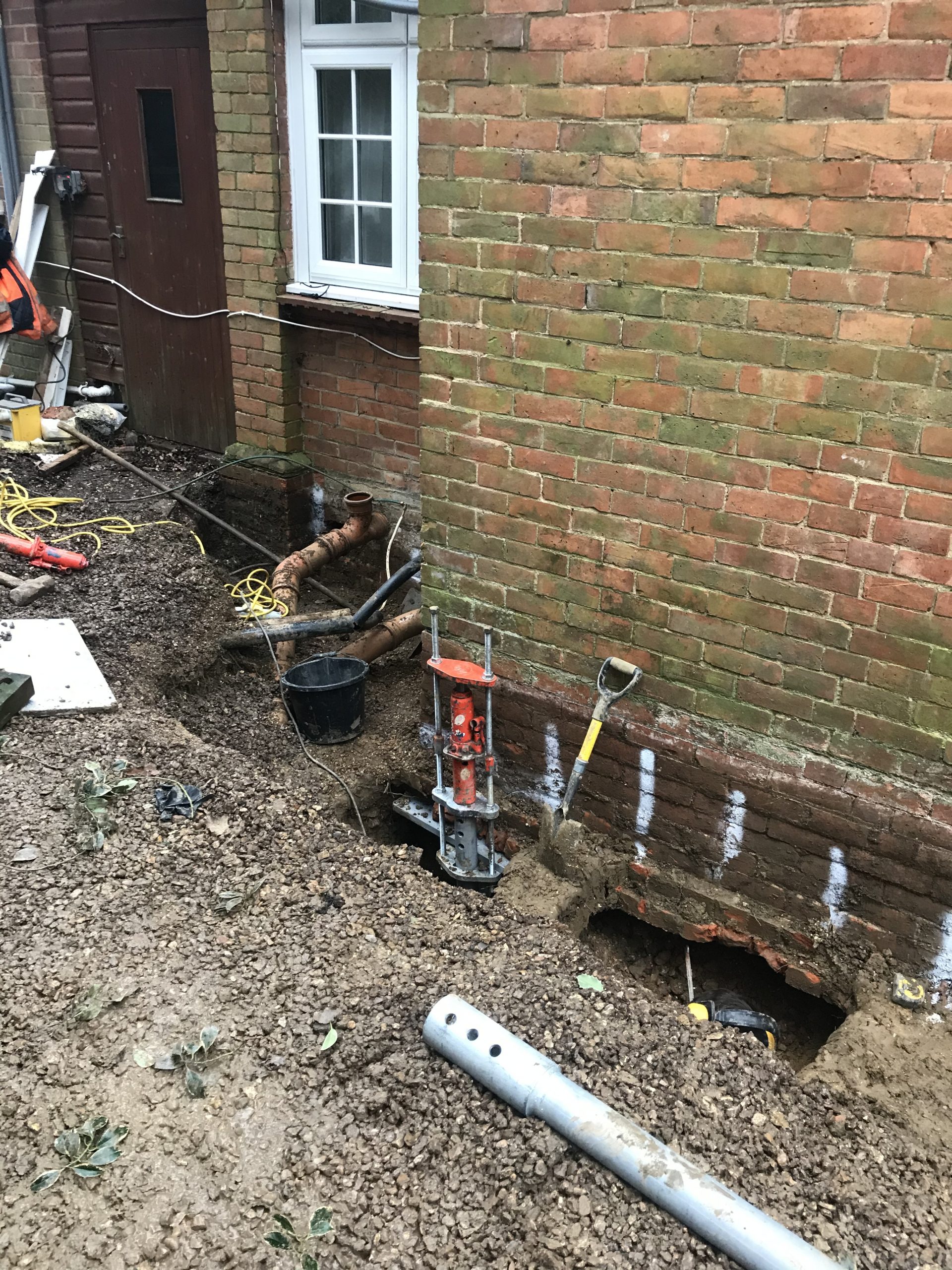

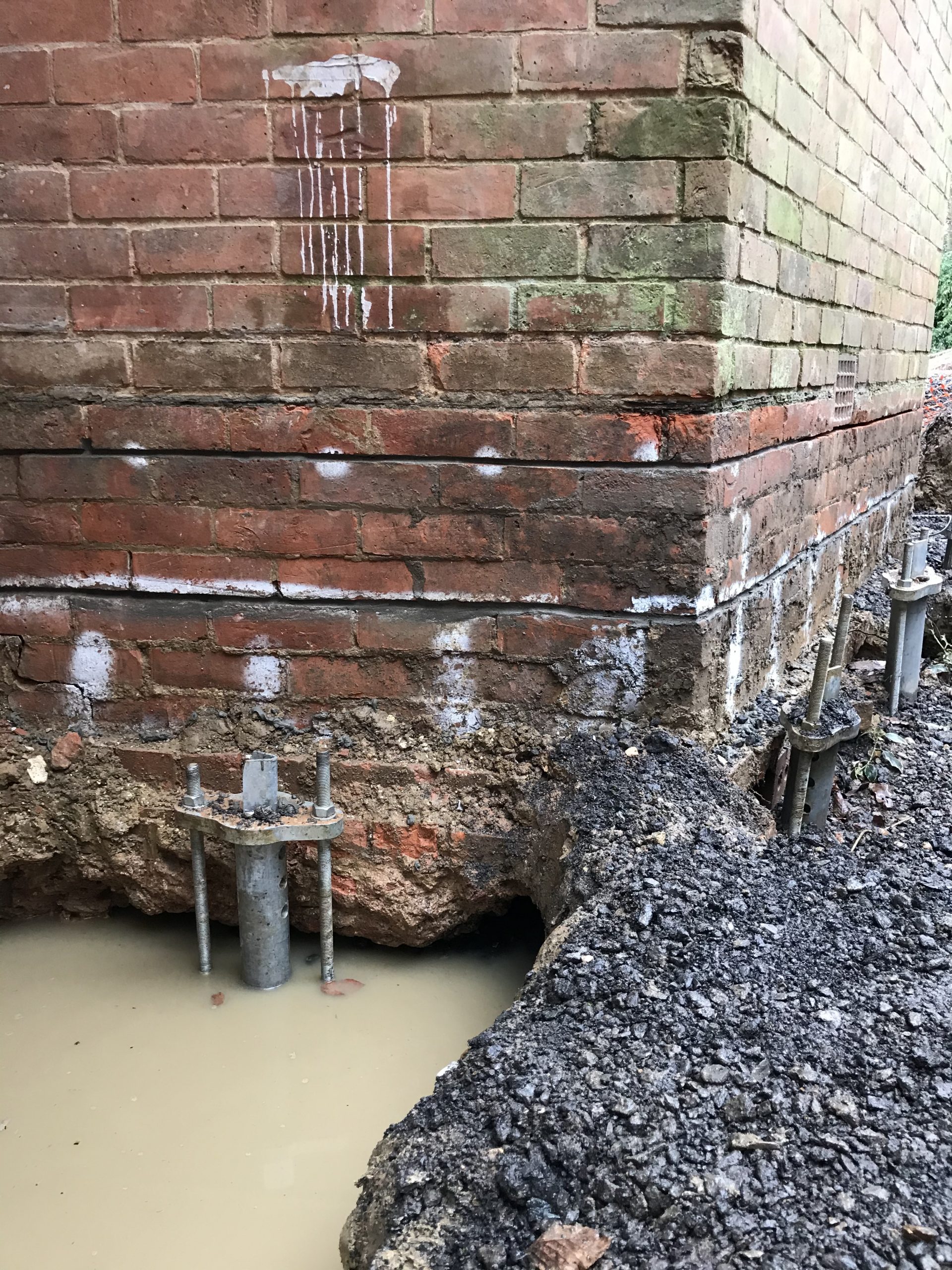

House suffering from constant movement, Screw/helical piling installed approx 4-5m to stop seasonal movement.
