Domestic

Case study

London side extension

Client: Private client
Purpose: Side extension to property
Ground Conditions: Upper clays into hard gravels
Pile type: 76r
Depth: 6m
Quantity: 16
Additional work: None
Location: West London

Nice and simple project.

The client had employed a builder to construct a pre fabricated wooden structure to enable simple fast installation of the building.

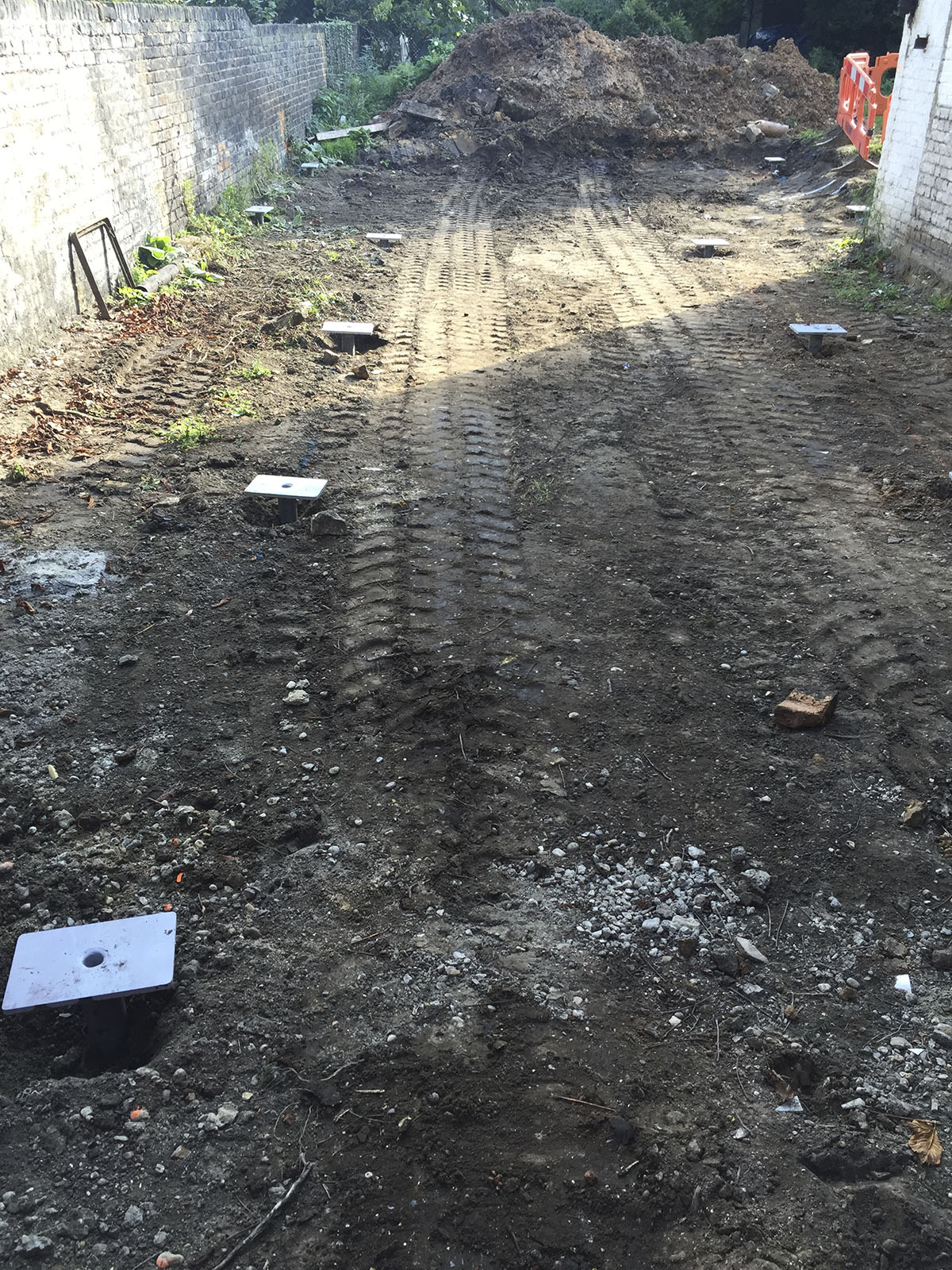

No concrete was required as the structure was to be attached directly to the piles.

As there were tree and underground services in close proximity screwpiling proved to be the fastest, cleanest and the least risk system.
